DXF and STEP Files

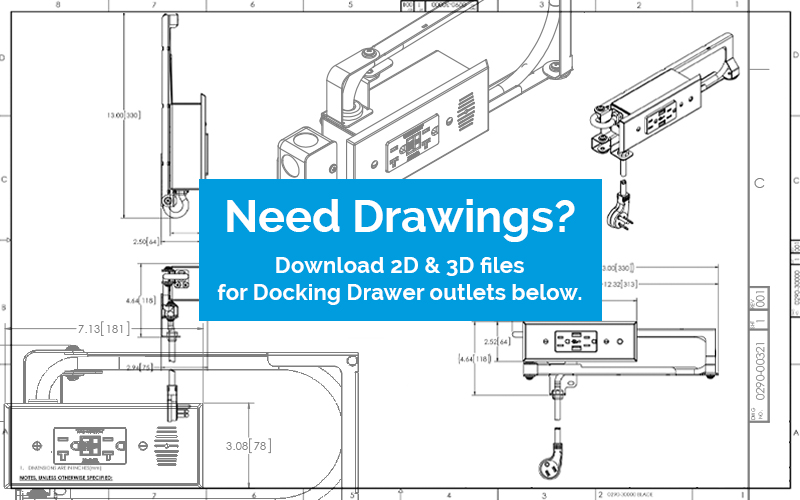

Need drawings of Docking Drawer outlets? Import our DXF and STEP files into your 2D and 3D programs for a seamless room renovation.

The free eDrawings Viewer from SolidWorks makes it easy to view these drawings! Download the eDrawings Viewer here.

North America

15 amp & 20 amp - Blade Series - DXF & Step Files

15 amp - Blade - 1514-110, 1514-120, 1514-130, 1514-150, 1514-160
20 amp - Blade - 2012-110, 2012-130, 2012-150, 2012-160
15 amp - Blade Duo - 1514-211, 1514-212, 1514-222, 1514-232, 1514-233, 1514-261, 1514-263, 1514-266
20 amp - Blade Duo - 2012-211, 2012-212, 2012-232, 2012-233, 2012-261, 2012-266
Style Drawer Canisters - 0024-00005, 0024-00010, 0024-00020, 0024-00030


3 amp - Blade Series - DXF & Step Files

Blade - 0290-30000, 0290-30001, 0290-30002
Blade Duo - 0290-30100, 0290-30101, 0290-30102, 0290-30400, 0290-30402
Blade X30, X32 and Blade Duo X30, X32 - 0290-30000-X30, 0290-30001-X30, 0290-30002-X30, 0290-30100-X30, 0290-30101-X30, 0290-30102-X30, 0290-30400-X30, 0290-30402-X30
Blade and Blade Duo - Side Cord Exit - 0290-30000-X110, 0290-30001-X110, 0290-30002-X110, 0290-30100-X110, 0290-30101-X110, 0290-30102-X110, 0290-30400-X110, 0290-30402-X110
USB Narrow - 0290-00078


20 amp - Style Drawer Series - DXF & Step Files

Style Drawer Blade - 0290-00321, 0290-00321-I, 0290-00321-U, 0290-00321-UI, 0290-00324, 0290-00324-I, 0290-00324-U, 0290-00324-UI, 0290-00330
Style Drawer Blade Duo -, 0290-20321, 0290-20321-I, 0290-20321-U, 0290-20321-UI, 0290-20324, 0290-20324-I, 0290-20324-U, 0290-20324-UI, 0290-20330
Style Drawer Flush - 0290-00032, 0290-00032-U, 0290-00050, 0290-00050-U, 0290-00033, 0290-00033-U



Rather talk to an outlet expert? Call us at (530) 205-3625
