Cut Out Templates

North American Cut Out Templates

15 amp & 20 amp - Blade Series

Applies to part numbers: 15 amp - Blade: 1514-110, 1514-120, 1514-130, 1514-150, 1514-160. 20 amp - Blade: 2012-110, 2012-130, 2012-150, 2012-160. 15 amp - Blade Duo: 1514-211, 1514-212, 1514-222, 1514-232, 1514-233, 1514-261, 1514-263, 1514-266. 20 amp - Blade Duo: 2012-211, 2012-212, 2012-232, 2012-233, 2012-261, 2012-266.

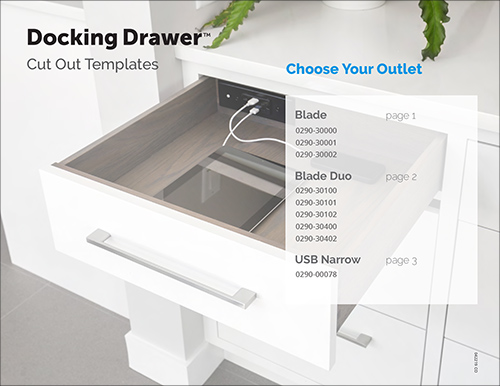

3 amp - Blade Series

Applies to part numbers: Blade: 0290-30000, 0290-30001, 0290-30002. Blade Duo: 0290-30100, 0290-30101, 0290-30102, 0290-30400, 0290-30402. USB Narrow: 0290-00078

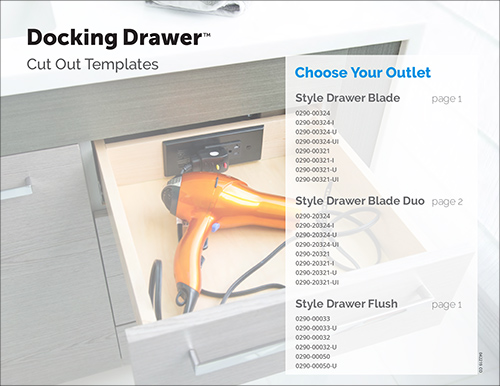

20 amp - Style Drawer Series

Applies to part numbers: Style Drawer Blade: 0290-00324, 0290-00324-I, 0290-00324-U, 0290-00324-UI, 0290-00321, 0290-00321-I, 0290-00321-U, 0290-00321-UI. Style Drawer Blade Duo: 0290-20324, 0290-20324-I, 0290-20324-U, 0290-20324-UI, 0290-20321, 0290-20321-I, 0290-20321-U, 0290-20321-UI. Style Drawer Flush: 0290-00033, 0290-00033-U, 0290-00032, 0290-00032-U, 0290-00050, 0290-00050-U.

International Cut Out Templates

International In-Drawer Outlets

Paper Size: 8.5 x 11 inches

Applies to part numbers: Docking Drawer Duo: 0290-20610-AUS, 0290-20610-EUR, 0290-20610-UK. Docking Drawer Trio: 0290-20533-AUS, 0290-20533-EUR, 0290-20533-UK.

International Cut Out Templates

International In-Drawer Outlets

Paper Size: A4

Applies to part numbers: Docking Drawer Duo: 0290-20610-AUS, 0290-20610-EUR, 0290-20610-UK. Docking Drawer Trio: 0290-20533-AUS, 0290-20533-EUR, 0290-20533-UK.
