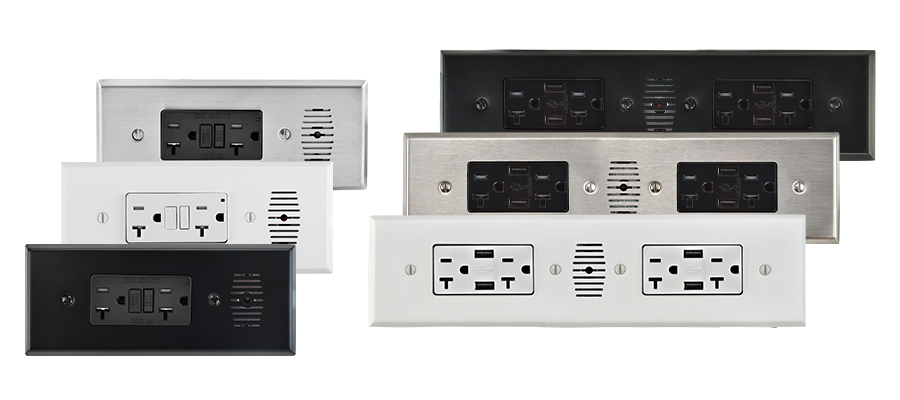

Style Drawer Blade, Style Drawer Blade Duo, or Style Drawer Flush Installation
4 Key Cabinet Measurements
You need 4 KEY CABINET MEASUREMENTS to confirm that a Style Drawer Blade or a Style Drawer Blade Flush will fit into your cabinet.
Style Drawer Blade & Style Drawer Blade Duo | Style Drawer Flush |
![]() | ![]() |
How to Measure


Will it Fit in My Cabinet?
Once you have the 4 KEY MEASUREMENTS of the cabinet, we can confirm if a Style Drawer Blade, Style Drawer Blade Duo or Style Drawer Flush will fit using the back page of our literature to gather the correct outlet specifications.
Style Drawer 24 Blade & Style Drawer 24 Blade Duo | Style Drawer 21 Blade & Style Drawer 21 Blade Duo | Style Drawer 24 Flush, Style Drawer 21 Flush & Style Drawer 18 Flush | |
1. Cabinet Depth![]() | Up to 24" deep | Up to 21" deep | Style Drawer 24 Flush - Up to 24" deep Style Drawer 21 Flush - Up to 21" deep Style Drawer 18 Flush - Up to 18" deep |
2. Drawer Box Width (OD)![]() | If drawer box width is more than 16", then the minimum interior drawer box height is 5.25" If drawer box width is more than 17.75", then the minimum interior drawer box height is 4" | If drawer box width is more than 14.25", then the minimum interior drawer box height is 5.25" If drawer box width is more than 16.25", then the minimum interior drawer box height is 4" | Style Drawer 24 Flush - Over 13.5" wide Style Drawer 21 Flush - Over 12" wide Style Drawer 18 Flush - Over 10.5" wide |
3. Space Behind the Drawer Box![]() | More than 2" | More than 2" | More than 5" |
4. Interior Drawer Box Height | If drawer box width is more than 16", then the minimum interior drawer box height is 5.25" If drawer box width is more than 17.75", then the minimum interior drawer box height is 4" For vertical organizers, the minimum drawer box height is 17.75" | If drawer box width is more than 14.25", then the minimum interior drawer box height is 5.25" If drawer box width is more than 16.25", then the minimum interior drawer box height is 4" | More than 4" |
